RH28C-6IK.BD.1F 177275 ZIEHL-ABEGG Centrifugal Fan

Brand：

ZIEHL-ABEGG

Category：

Centrifugal Fan

Description：

Brand: ZIEHL-ABEGG
Part No：RH28C-6IK.BD.1F 177275
Fan Type：Centrifugal Fan
Rated Voltage(V)：1~200-277
Size(mm)：280
Max.Air Flow(m³/h)：3100
Max.Pressure(Pa)：1400
Input Power(W)：800
Speed(rpm)：3090
Noise(db)：50

00852-56261528 info@apacfan.com

Nominal data

Brand：

ZIEHL-ABEGG

Part No.：

RH28C-6IK.BD.1F 177275

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

1~200-277

Size(mm)：

280

Max.Air Flow(m³/h)：

3100

Max.Pressure(Pa)：

1400

Input Power(W)：

800

Speed(rpm)：

3090

Noise(db)：

50

Description

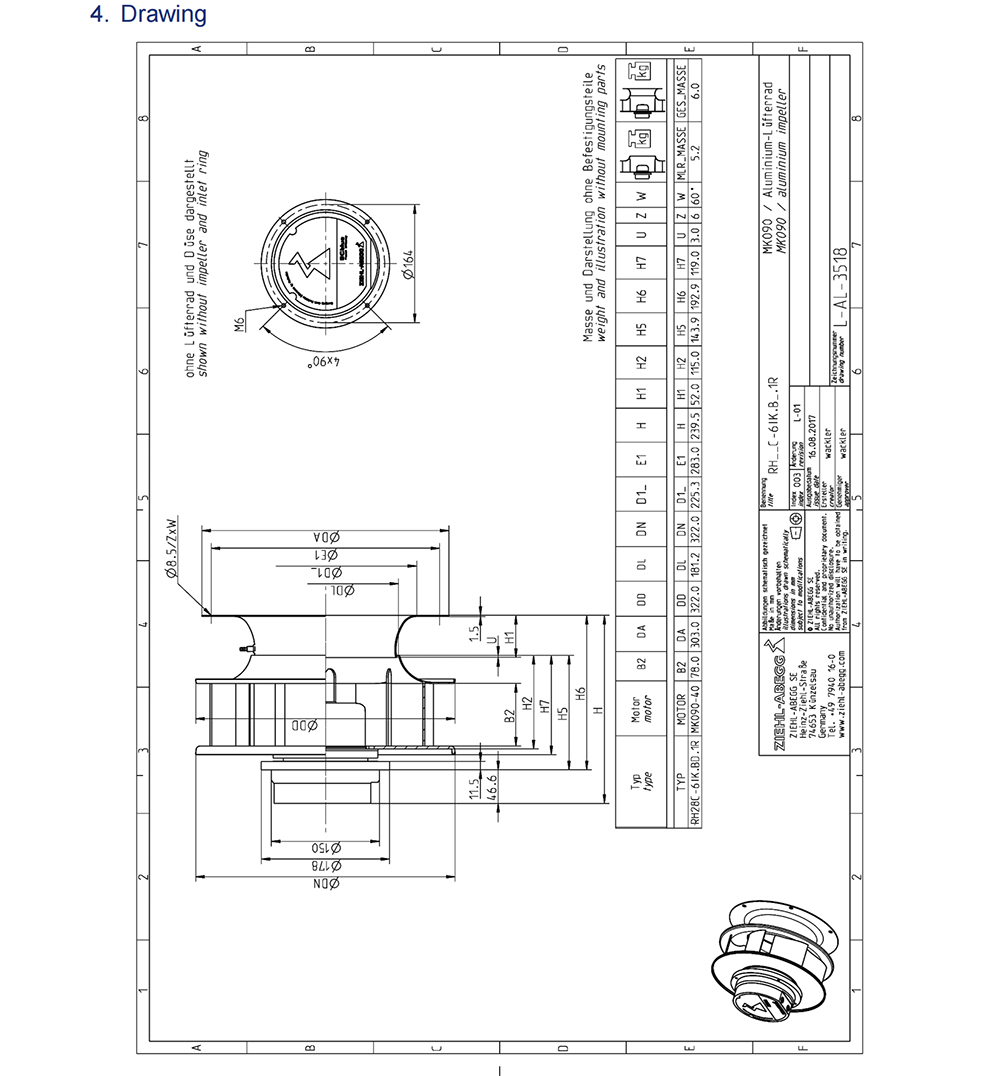

RH28C-6IK.BD.1F 177275 Ziehl-abegg Specification drawing：
